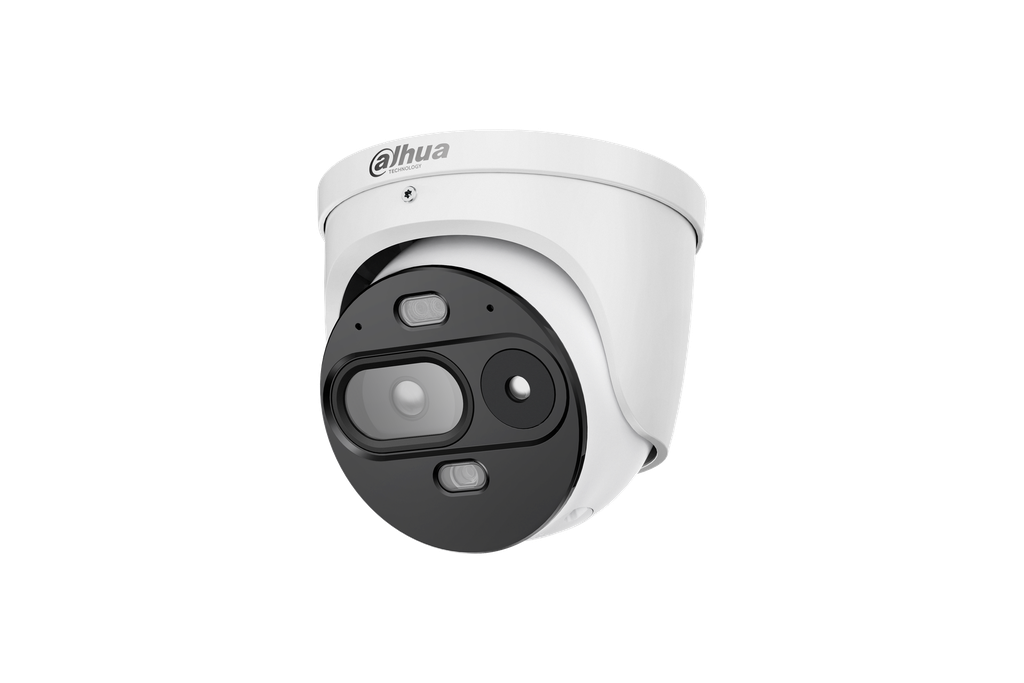

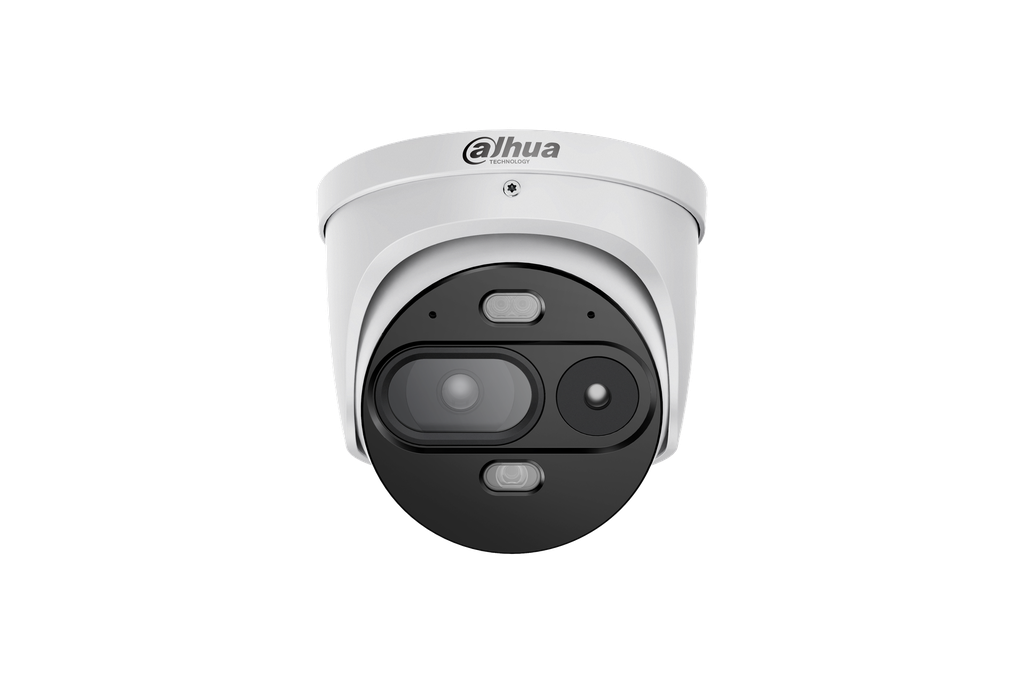

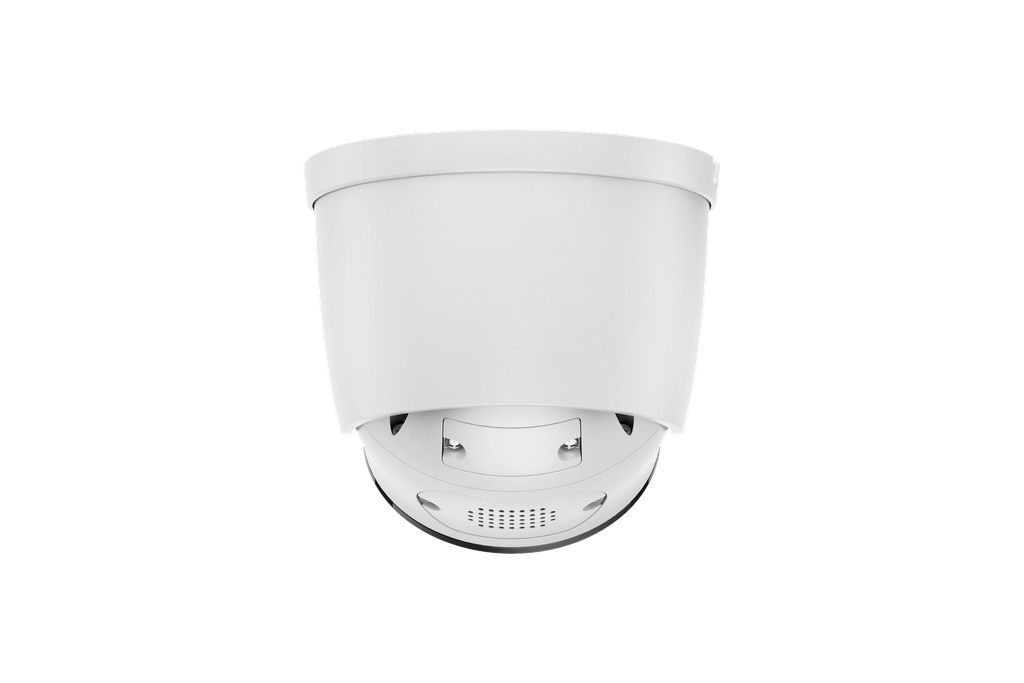

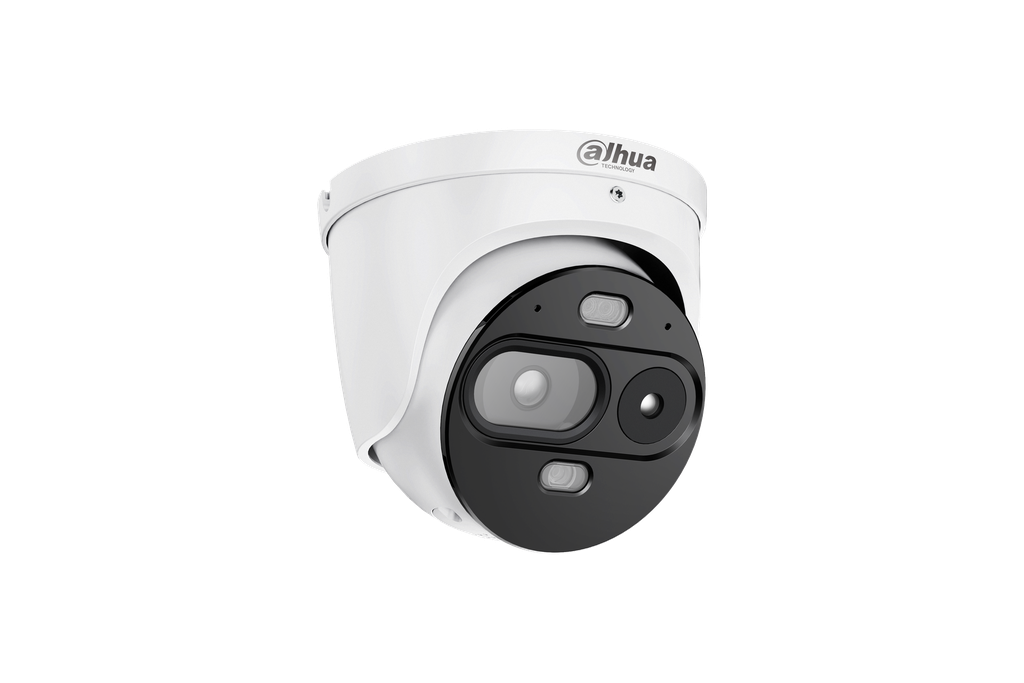

DHI-TPC-DF1241-V1
Thermal Network Mini Hybrid Eyeball Camera
- · Vanadium oxide uncooled focal plane detector.
- · 1/1.8" 4Megapixel progressive scan CMOS.
- · AI functions: heat (fire) detection, tripwire, human/vehicle classification, smoking detection, call detection, and smoke detection.
- · Local audio, white light alarm prompts, red and blue light alarm prompts.
- · Dual image fusion (visible and thermal channels).
- · Built-in dual microphones.
- · Wide input voltage 12 (±20%)–24 VDC; PoE (802.3af).
- · Ultra low false alarm with Xinghan Large-Scale AI Model.
- IP67 rated.
Spesifikasjoner
| Kamera | |
|---|---|
| Produsent | Dahua |
| Kameratype | Eyeball |
| Oppløsning | 4MP |
| Maks IR lengde | 30m |
| Bildebrikke | 1/2.7" |
| WDR | 120 dB |
| Temperatur måling | Nei |
| Linse | |
|---|---|
| Optikk: Fast / Variabel | Fast |
| Brennvidde | 4.0mm |
| Størrelse / Miljø | |
|---|---|
| Miljø | Utendørs |
| IP klassifisering | IP67 |
| I/O | |
|---|---|
| Alarm I/O | 2/2 |
| Andre | |
|---|---|
| Belysning | Kombi IR/HVIT |
